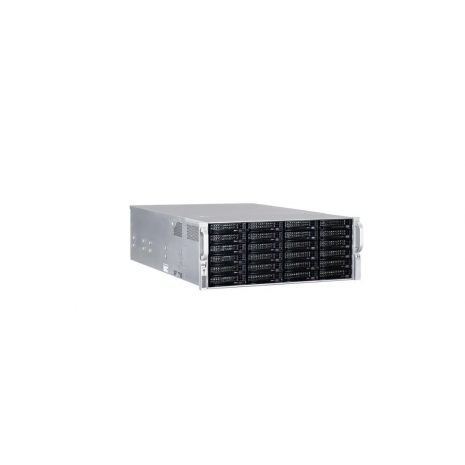

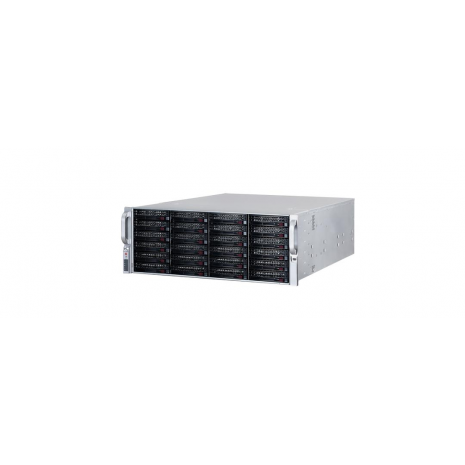

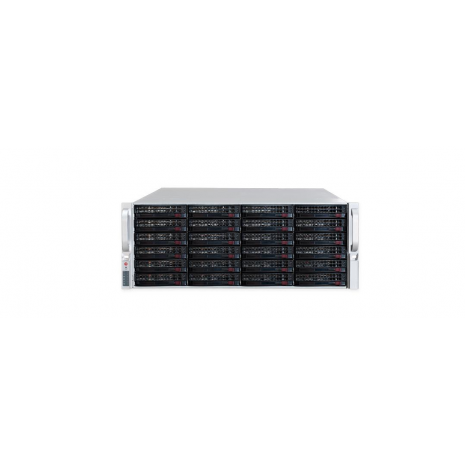

| Model | JBOD1024 |
| Processor Support | N/A |
| Drive Bays | JBOD Chassis-Up to 24 x 3.5" hot-swap HDD bays for JBOD solution Scale LILIN NAV1108 / NAV1072 server storage expansion capacity |
| System Cooling | Fans - 3x 8cm hot-swap redundant PWM cooling fans / 2x 8cm hot-swap exhaust fans & air shroud |
| Front Panel-Buttons | Power On/Off button , System Reset Button , Unit Identification (UID) button |
| Front Panel-LEDs | 1 Network Activity LEDs |
| Backplane | 1) SAS 12G single expander backplane, with LSI SAS3 expander, support 24x 3.5" 2)SATA3/SAS2/SAS3 drives, with 4x mini-SAS HD connectors |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | 4 Amp @ +5V standby ; 75 Amp @ +12V |
| Regulatory (Power Supply) | USA - UL listed, FCC / Canada - CUL listed / Germany - TUV Certified / Europe/CE Mark / EN 60950/IEC 60950-Compliant |
| Operating temperature | 5°C~35°C (41°F~95°F) |
| Storage temperature | -40°C~60°C (-40°F~140°F) |
| Operating humidity | 8%~90% (non-condensing) |
| Storage Humidity | 5%~95% (non-condensing) |
| Form Factor | 4U chassis |
| Dimensions | 178mm(H) x 437mm(W) x 660mm(D) |
| Packaging | 27'' (W) x 14.8''(H) 37.3'' (L) |
| Weight | Gross Weight 80 lb (36.29 kg) |
