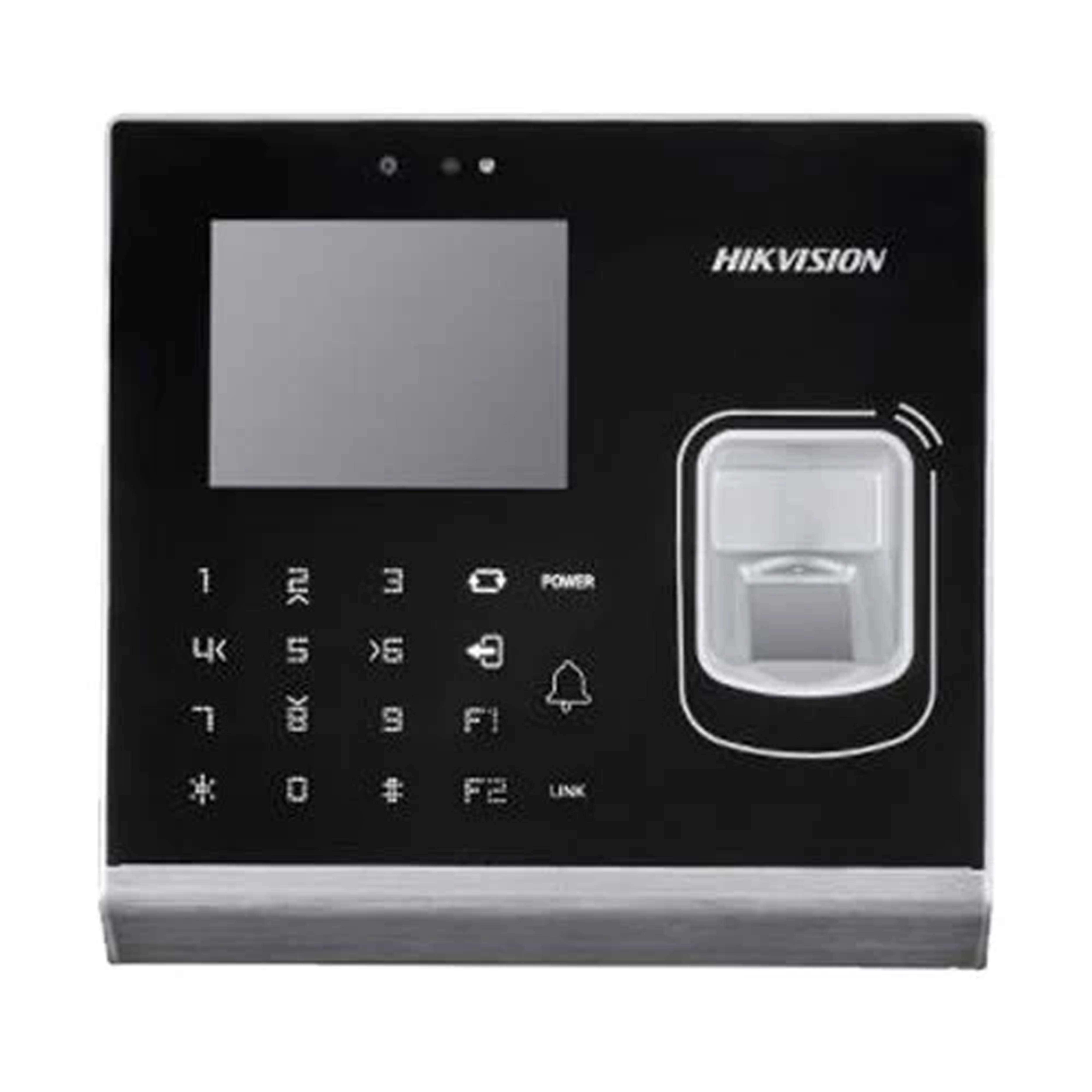

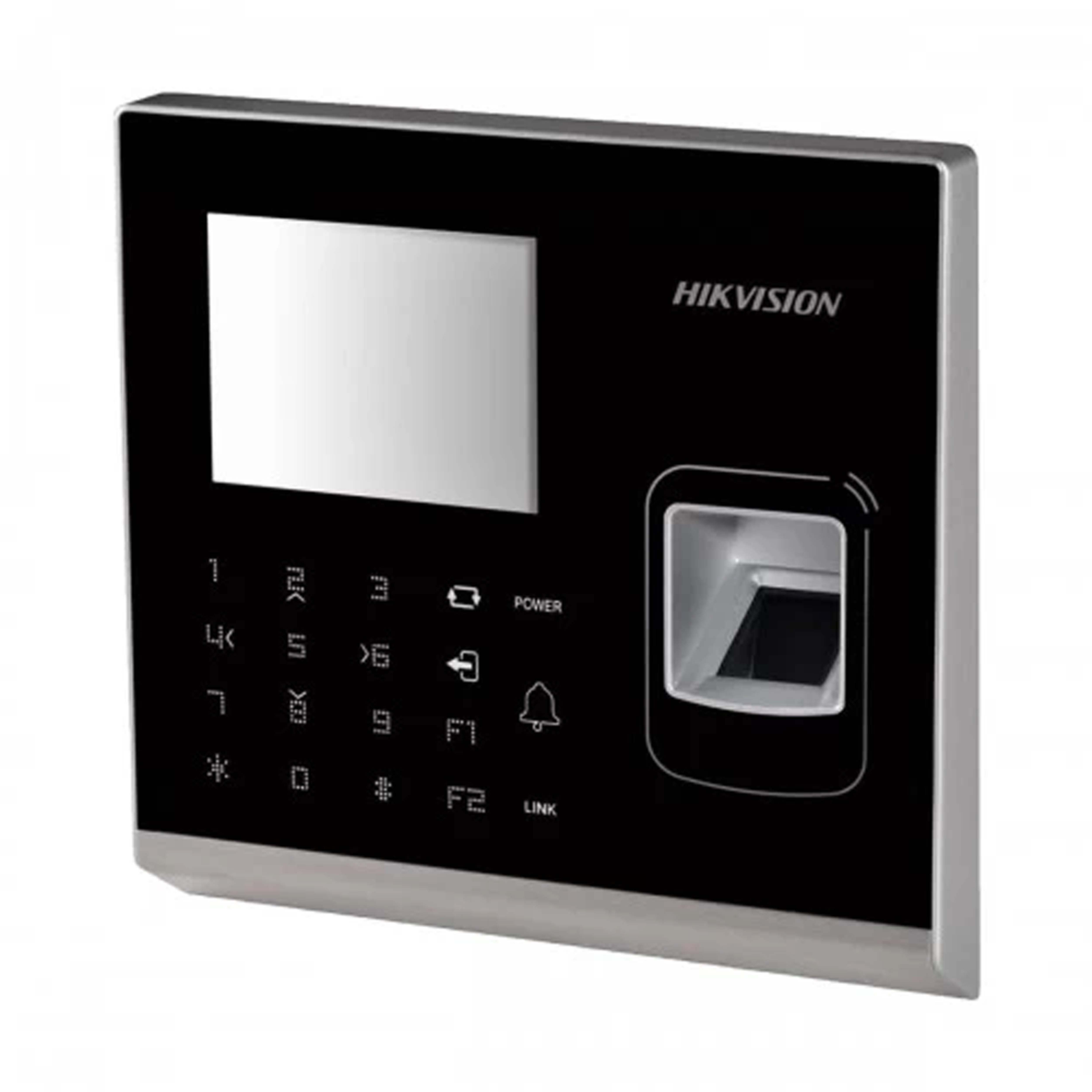

Hikvision DS-K1T201EF-C Access Control with Camera

• Supports Local activation
• IP addresses conflicted alarm
• M1 card encryption
• Supports communicating with 4 software clients simultaneously
• Supports uploading real-time events
• Gets offline events: Avoids events losing
• Doorbell ringtone settings function
• Touch mode and blue light display technique for keypad
• Stand-alone settings for the terminal
• 7.112cm(2.8-inch) LCD display screen to display the time, the date, etc.
• Communication via wired network (TCP/TP) and Wi-Fi
• Supports EHome protocol for public network communication
• Face detection and picture capturing function implemented by built-in camera (2 MP optional, only supported by DS-K1T201EF/MF-C)
• Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
• Supports multiple authentication modes (card, fingerprint, card + fingerprint, card + password, fingerprint + password, card + fingerprint + password, and so on)
• Supports RS-485 and Wiegand (26/34) communication for connecting external card reader
• Applies authentications from the client to the device or uploading the captured pictures from the device to the client (only supported by DS-K1T201EF/MF-C)
• Supports working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
• Supports EM card reading (supported by DS-K1T201EF/EF-C)
• Supports Mifare card reading (supported by DS-K1T201MF/MF-C)
• Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, blacklist alarm, forced opening door alarm, IP addresses conflicted alarm, and duress card alarm and so on
• Creates dismiss code for dismiss alarm
• Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
• Data can be permanently saved after power-off

32 Bit High-performance Processor

• Storage256M Storage
• Operation SystemLinux
• Camera2 MP (Optional)
• Card Capability100,000 Cards and 300,000 Swiping Card Records
• Fingerprint CapacityMax. 5000 Fingerprints; Up to 10 Local Collected Fingerprint Templates for Each Person
• Fingerprint Recognition Speed1:1≤1s, 1:3000≤1.5s
• FAR (False Acceptance Rate)≤0.001%
• FRR (False Recognition Rate)≤0.01%
• Fingerprint ModuleOptical Fingerprint Recognizer Module
• Card Reading ModeEM Card Reading
• Communication ModeTCP/IP and Wi-Fi
• Input InterfaceDoorbell × 1, Tamper Alarm × 1, Exit Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2
• Output InterfaceLock Relay × 1, Alarm Output × 1
• USB InterfaceUSB 2.0
• LCD Screen320 × 240 (pixel) LCD-TFT Display Screen
• Key Board17 Keys
• LED IndicatorPower/ Communication
• PromptBeeper and Audio
• Power Supply12 VDC/3 A
• Working CurrentMax. 500 mA
• Working Temperature-30°C to 65°C (-22°F to 149°F)
• Working Humidity10% to 90% (No Condensing)
• Dimension137mm × 142mm × 35mm (13.72[5.4inch] ×14.224cm[5.6inch] × 3.56cm[1.4inch])
• Weight400g (0.88lb)
