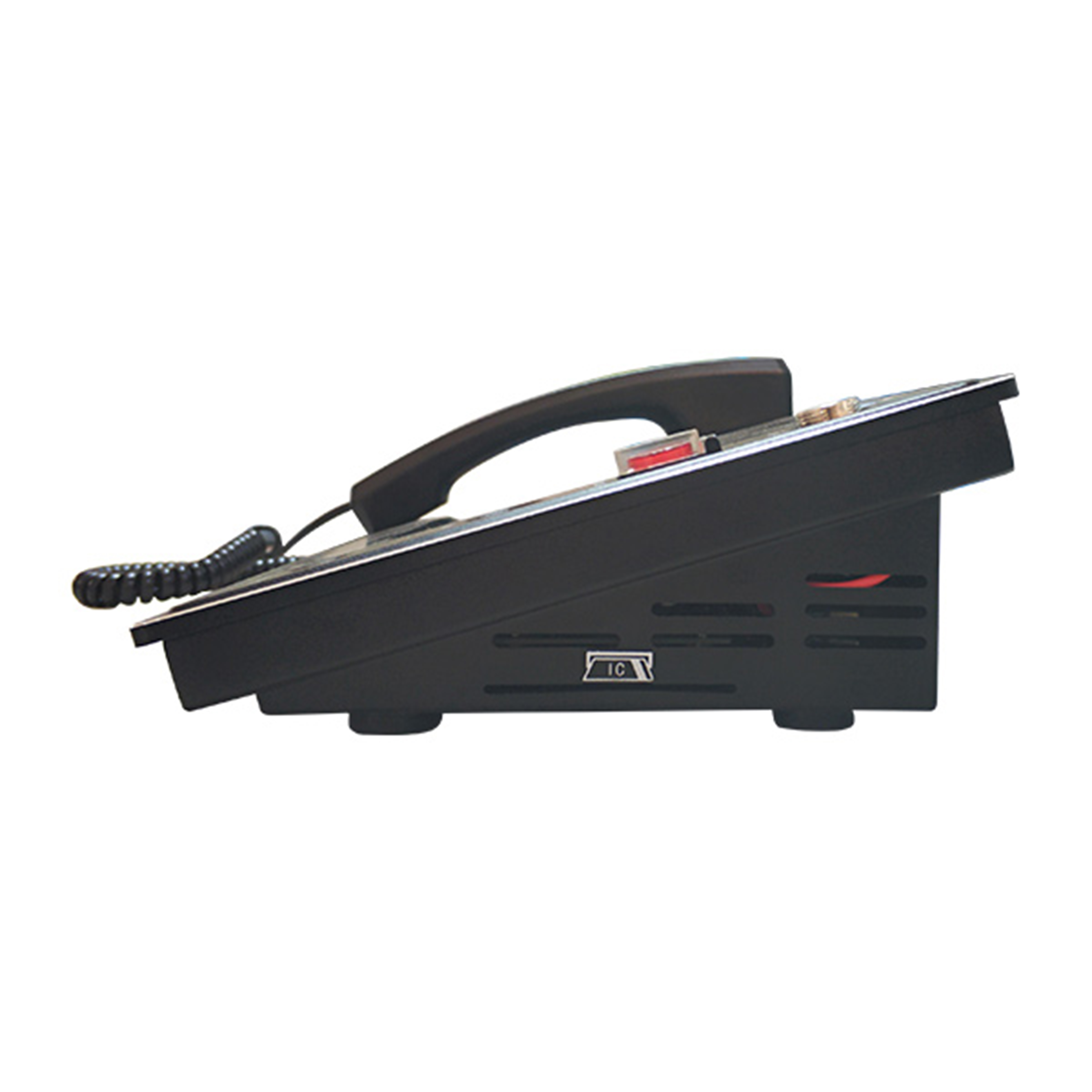

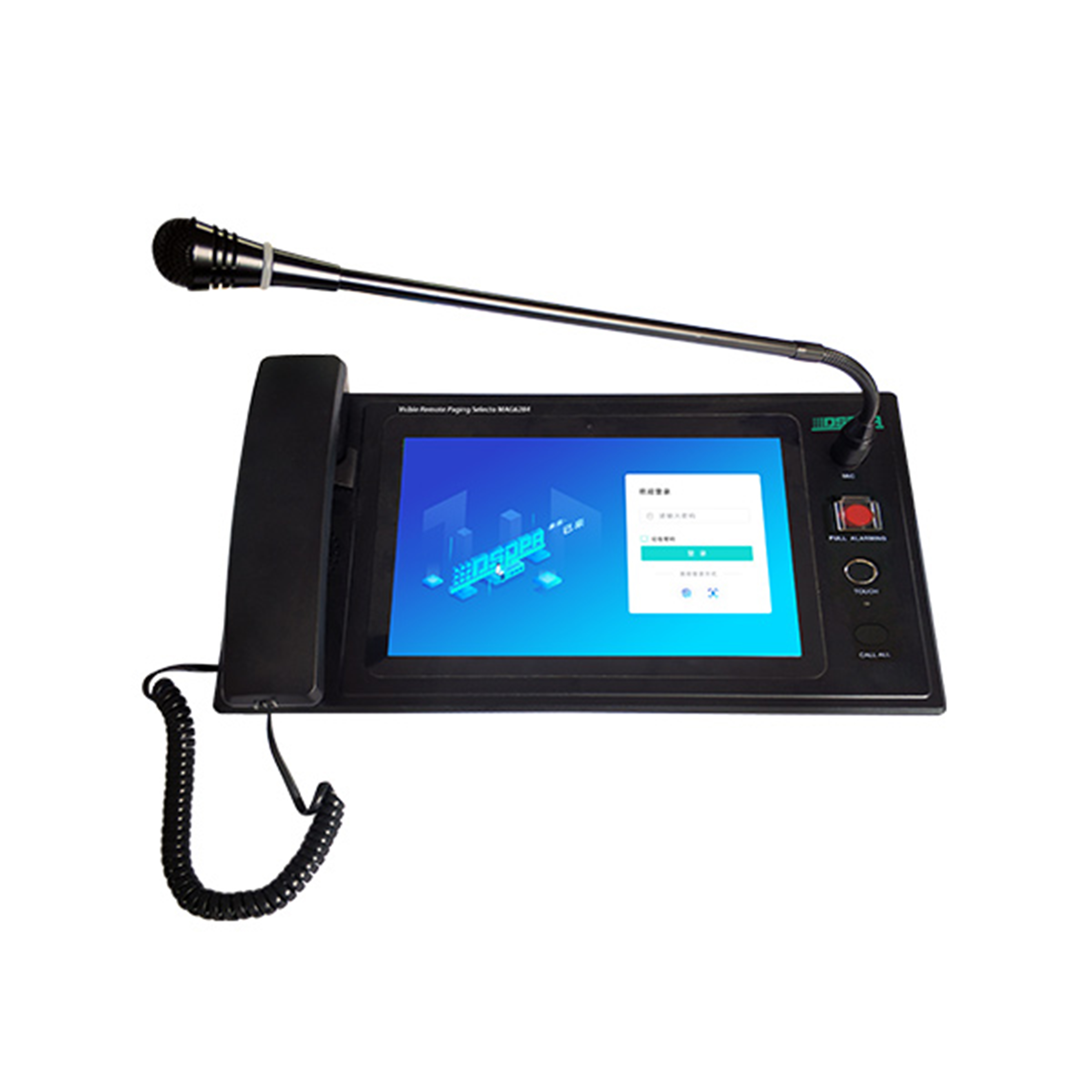

MAG6284 Network Video Paging Controller

Brand:
Call For Price
FEATURES:
MAG6284 visual network paging controller is a network high-fidelity call station with camera video intercom function based on TCP/IP transmission protocol, which can be hooked up to any place that the network can reach. And can realize the paging control of 1000 partitions, with the...
In Stock

MAG6284 visual network paging controller is a network high-fidelity call station with camera video intercom function based on TCP/IP transmission protocol, which can be hooked up to any place that the network can reach. And can realize the paging control of 1000 partitions, with the characteristics of high stability of traditional paging stations, stable and reliable operation, and low failure rate. The signal is fully digital transmitted, with intelligent control as the core. The 10-inch color LCD display/please click screen is equipped, and the graphic user interface is more user-friendly. With auxiliary input and output channels, local audio source expansion and power amplifier expansion can be realized. The built-in player independently developed by our company enables local monitoring of host programs.

Features

● Based on the Android system.10 inch LCD touchscreen
● Max 1000 zones control and management
● Built-in one key alarm button, rapid broadcast for all zone; Built-in DSP sound technology
● Built-in USB and Micro-USB as audio source
● One Aux input, one Aux output, one net audio output
● It supports 100/10Mbps adaptive TCP/IP network transmission protocol
● Support HDMI for external display screen
● With face, fingerprint and voice authentication function


● Power supply: DC15V or POE48V

Specification

Parameters

AUX OUT rated output voltage

1.0±0.2V

NET OUT rated output voltage

MIC input sensitivity (output 1V)

50±10mV

MIC distortion (1kHz/1V)

MIC≤0.3%

Effective frequency range of MIC gain limitation (±3dB)

100-16000Hz

MIC signal-to-noise ratio (30k low pass)

≥68dB

MIC dynamic range

≥20dB

MIC input sensitivity (output 1V)

300±50mV

AUX distortion (1kHz/1V)

AUX≤0.3%

AUX signal-to-noise ratio (30k low pass)

≥68dB

Effective frequency range of AUX gain limitation (±3dB)

50-18000Hz

AUX dynamic range

≥20dB

Effective frequency range of monitor (voice intercom) gain limitation (±3dB)

80-16000Hz

Monitor signal-to-noise ratio (voice intercom)

≥65dB

Operating voltage range

DC+14V

Standby power consumption

7.3W

Power

DC15V/PoE(802.3af) power supply

Overall power consumption

9.5W

Outer packing size (L×W×H mm)

440×360×135

Machine dimension (L×W×H mm)

350×196×103

Gross weight

4kg

Net weight

2.5kg
