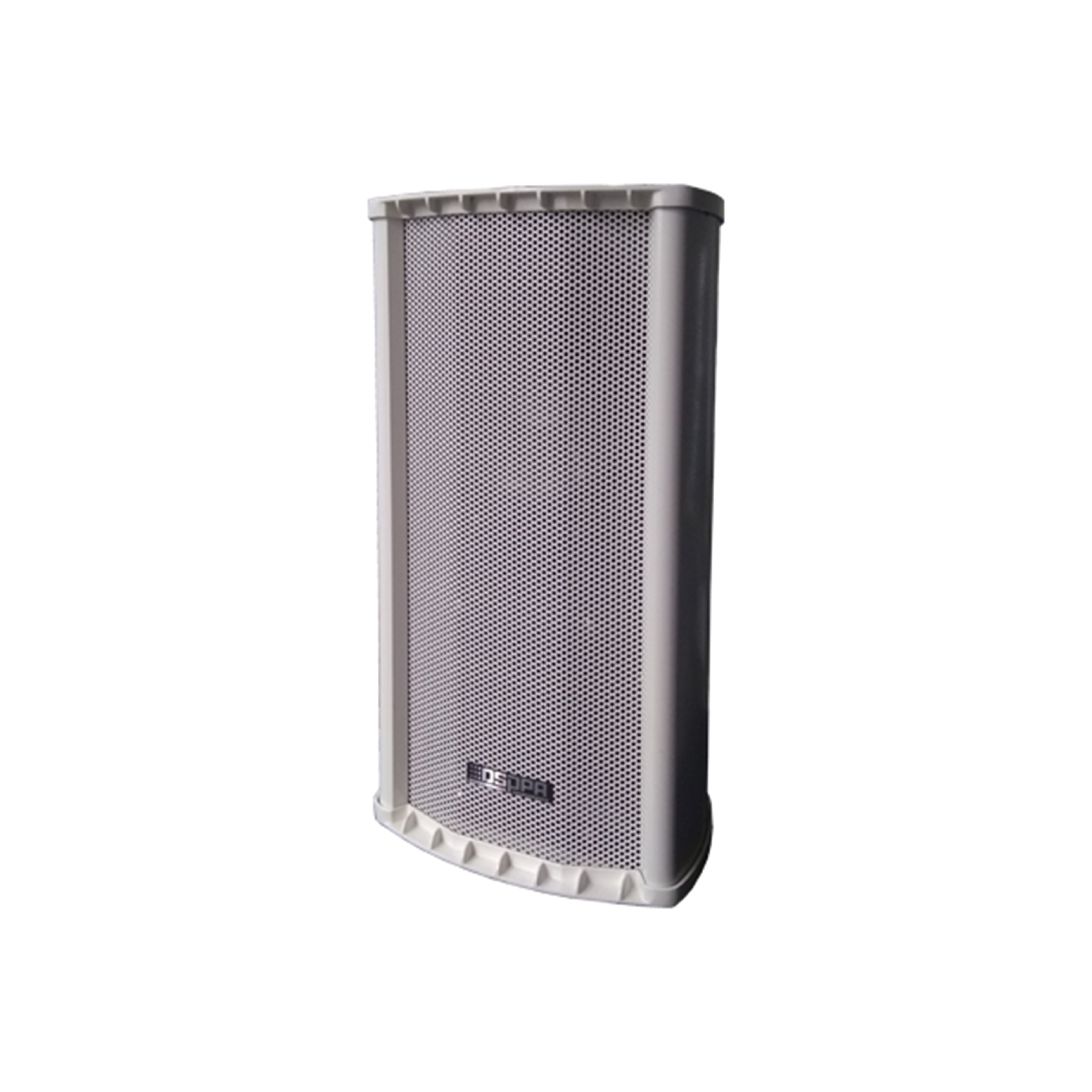

MAG6388 Outdoor IP PA Column Speaker is a network all-digital analog-digital conversion signal processor with high-fidelity speaker based on TCP/IP transmission protocol. The modern network play terminal can be mounted to any place with access to network. The machine can output the remote audio data stream as the audio signal and give a sound directly, with intelligent control of the host.
Features
● All-weather design and waterproof unit, suitable for indoor and outdoor application; long service life, high sensitivity (90±2dB), clear and bright sound;● The maximum sound pressure level is 108±2dB, and the effective frequency range is as wide as 80Hz ~ 16kHz;
● Can be attached anywhere the network can arrive;
● Support up to 48kHz sampling rate 16bit digital audio stream decoding;
● Built-in 1×120W digital amplifier, with low power consumption;
● Can play background music, emergency paging, alarm signals from the system host;
● Aluminum mesh, no rust;
● Two-way structure, wide frequency band;
● Waterproof grade IPX6 with waterproof structure.
Model | MAG6388 | |
Acoustic System | Driver Unit | 8＂×2,1＂×1 |
Sensitivity(1m,1W) | 92±2dB | |
Max.SPL(1m) | 108±2dB | |
Freq. Resp. | 80Hz-16kHz(±3dB) | |
Rated Power (RMS) | 120W | |
NET Play | Freq. Resp. | 50Hz-16kHz(±3dB) |
Distortion | ≤0.5% | |
SNR | ≥70dB | |
Power Supply | AC220V/50Hz | |
Package Dimension (L×W×H mm) | 285×315×775 | |
Machine Dimension (H×W×L mm) | 230×250×665 | |
Gross Weight | 15.7kg | |
Net Weight | 12.2kg | |
