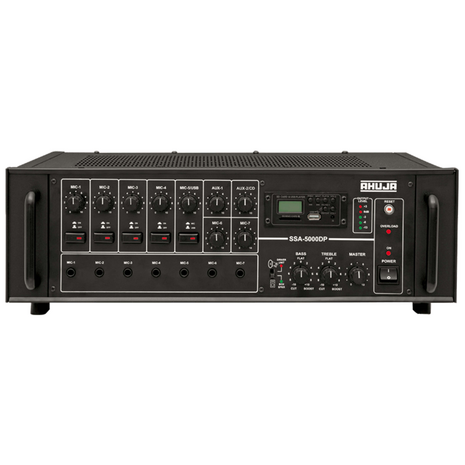

HIGH WATTAGE PA MIXER AMPLIFIERS SSA-5000DP

Brand:
Call For Price
FEATURES:
SSA-5000DP 500 WATTS with Built-in Digital Player High Wattage PA Mixer Amplifier 7 Mic & 2 Aux Inputs. Built-in MP3 player with remote control for USB, SD/MMC card reader. Preamplifier and Line Output for connecting to a Booster Amplifier. Line Input for connecting the output from any...
In Stock

SSA-5000DP

500 WATTS with Built-in Digital Player

High Wattage PA Mixer Amplifier

  • 7 Mic & 2 Aux Inputs.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.
  • Preamplifier and Line Output for connecting to a Booster Amplifier.
  • Line Input for connecting the output from any external mixer or another amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

Power Output

750W Max., 500W RMS at 10% THD 450W RMS at 5% THD, 415W RMS at 2% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ

Frequency Response

50-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

Output

Preamp 200mV/600Ω, Line 1V/1kΩ

Speaker Output

4Ω, 8Ω, 70V & 100V

Digital Player

MP3 Player with USB, SD and MMC Card Reader

Power Supply

AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)

Power Consumption

AC: 1000VA DC: 8A

Dimensions

W510 × H172 × D385 mm

Weight

27.0kg
