| Authentication Method | Biometric | |
| Dust/ Water Resistance | X | |
| Memory | Max Users | 250,000(Finger) 10,000(Face) |
| Fingerprints (Templates) | FP:250,000(1:1) 25,000(1:N) Face:10,000(1:1) 2,000(1:N) | |
| Logs | 10,000,000 | |
| Images | 20,000 | |
| Communication | With Server | TCP/IP |
| Other | SD Card | |
| Wireless LAN(Wi-Fi) | Optional | |
| Wiegand OUT | O | |
| RS232 | O | |
| RS485 | O | |
| Wiegand IN | O | |
| Display | LCD | 5″Color Touch |
| Backlight | O | |
| Embedded Camera | Dual | |
| Card | 125khz-EM | O |
| HID Prox | Optional | |
| HID iclass | X | |
| 13.56MHz Smart Card | O | |
| Keypad | Touch Screen | |
| Function keys | SOFT | |
| Door Phone | Volp | |
| FP Sensor | Platen Area | 20.3 X 20.3 mm |
| Resolution | 500 dpi | |
| Authentication Speed | (1:1) | < 0.2 sec |
| 1:N(1,000) | < 0.7 sec | |
| Dimension | (W) X (H) X (D) mm | 149.5 X 207.8 X 45.5 |
| FRR /FAR | 0.1% / 0.0001% | |
| Operating Temperature | -20 ~ 60℃ | |
Specification

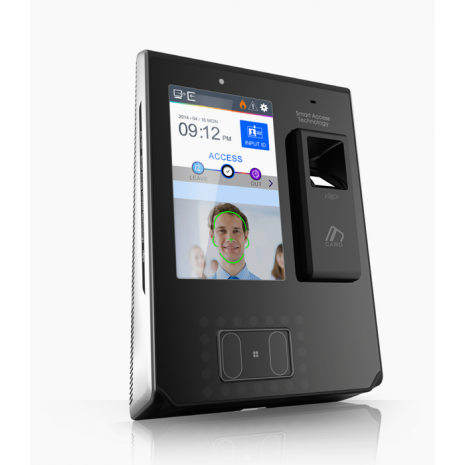

Detail Specification AC-7000
