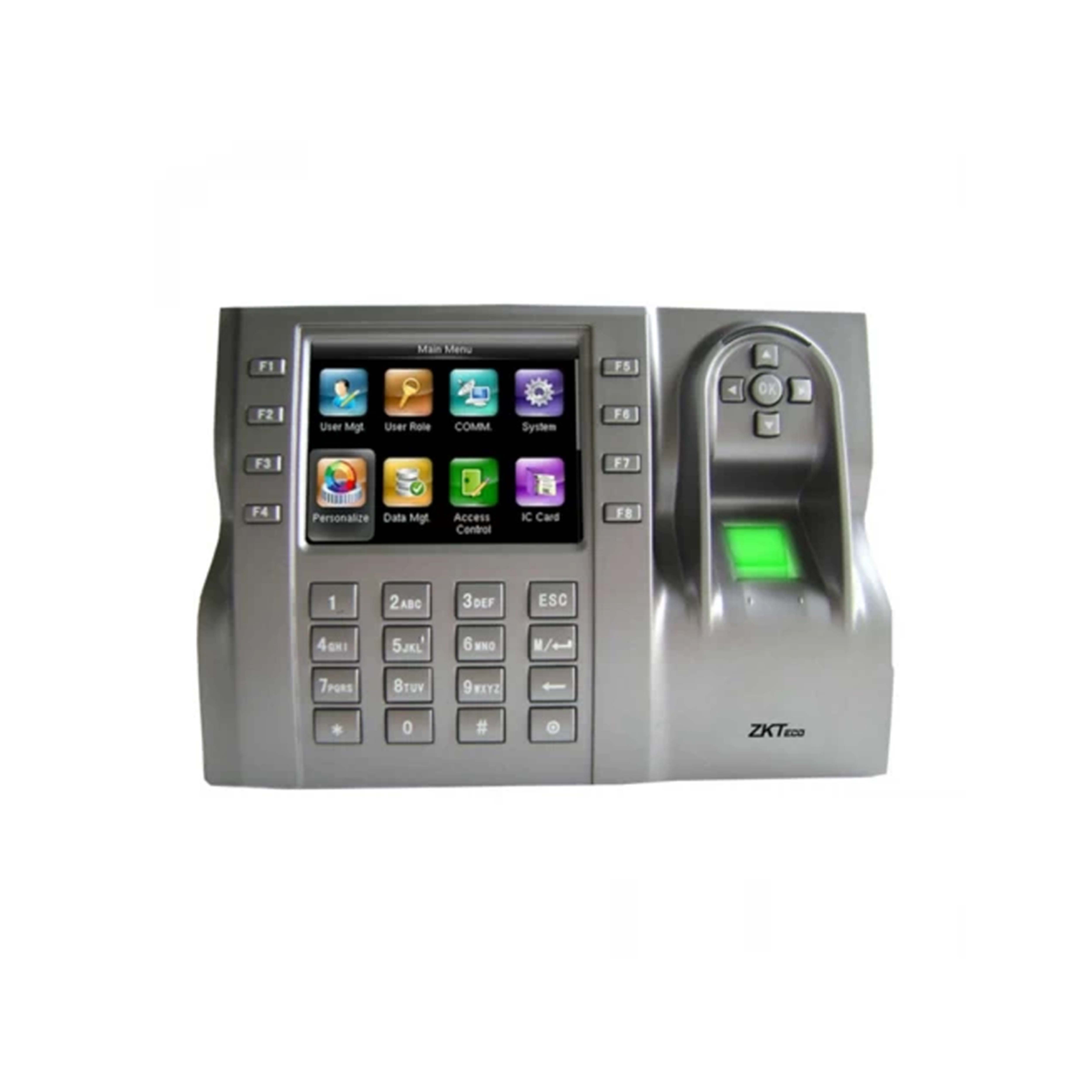

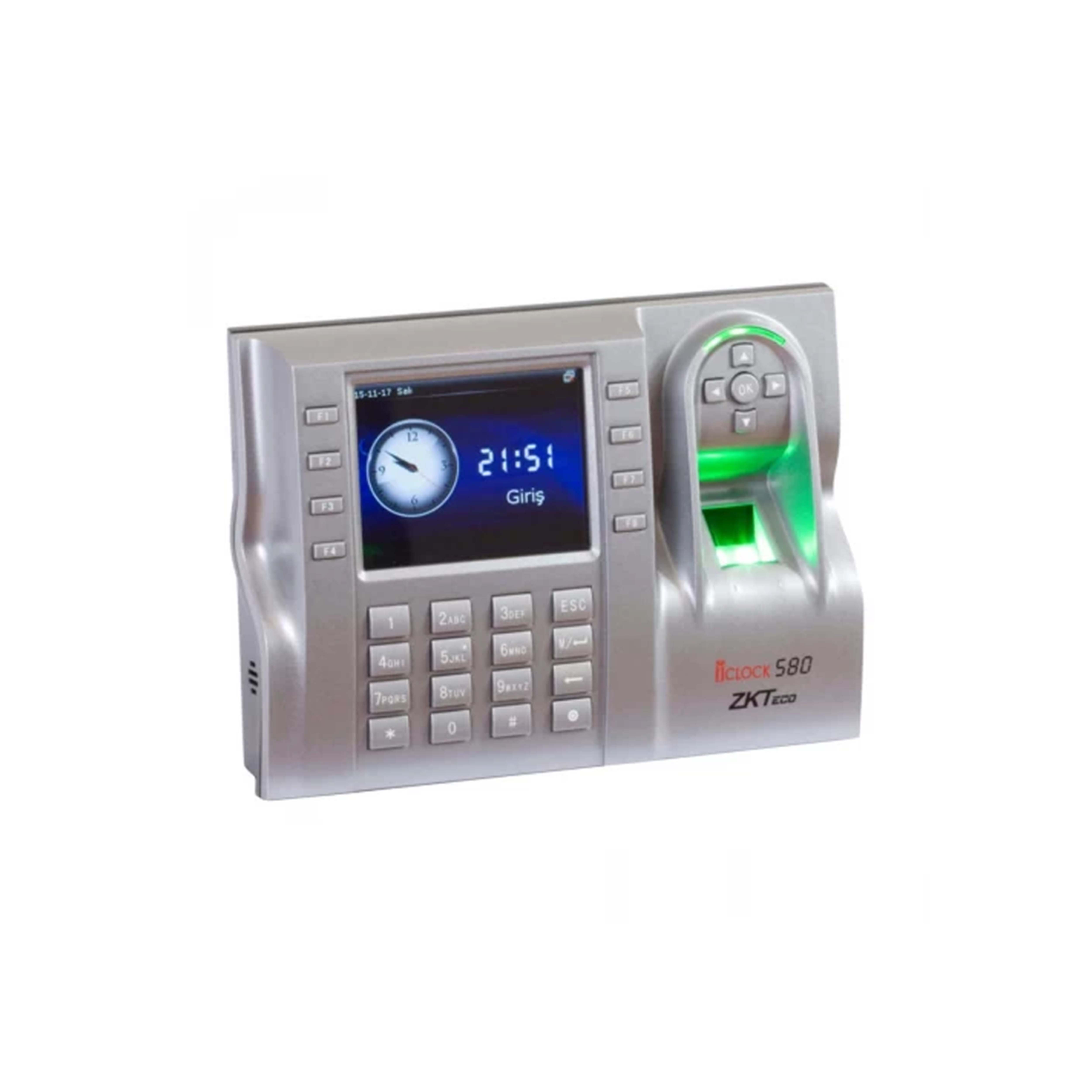

iClock 580 is a Time & Attendance and access control terminal with incorporated ZK fingerprint sensor and 3’5 TFT display. Easy to install, and with a modern design, it is the perfect solution for all kinds of installations. The color TFT display offers users easy menu management. iClock 580 has professional firmware functions. It can connect to Time & Attendance management software by Ethernet or USB port (optionally it can work by Wifi and GPRS), and also operate on standalone mode, downloading data by USB pendrive. For access control, it allows time zones and groups and the relay can be connected to lock or external siren.
SPECIFICATION
| Fingerprint Capacity | 8.000 |
|---|---|
| ID Card Capacity | 10.000 (optional) |
| Record Capacity | 200.000 |
| Display | 3.5-inch Screen |
| Communication | RS-232/485, TCP/IP, USB Client/Host |
| Optional | EM RFID, MF RFID, Wi-Fi, GPRS |
| Power Supply | DC 12V 1.5A |
| Operating Temperature | 0°C- 45°C |
| Operating Humidity | 20%-80% |
| Verification Speed | ≤1 sec |
| Dimension | 189x136x44mm (L×W×T) |
| Gross Weight | 1.30 kg |
| Software | ZKTime Enterprise, ZKTime Small Business, BioTime 7, ZKTime.Net 3.0 |
